LED WATERPROOF BATTEN HFW-D SERIES

Features

  • Replaceable LED module
  • LED drivers included
  • Available in single and double lamp versions
  • Option of 1-10V dimming
  • Ingress protection rating: IP65

Electrical Characteristics

Rated supply voltage 220-240 VAC ±10%
Lamp switching cycles >200,000
Ambient temperature (ta) -20 … +50°C
Driver efficiency up to 90%
Power factor ≥95%
THD <15%
CRI >80
Lumen maintenance (L70) >35K Hrs

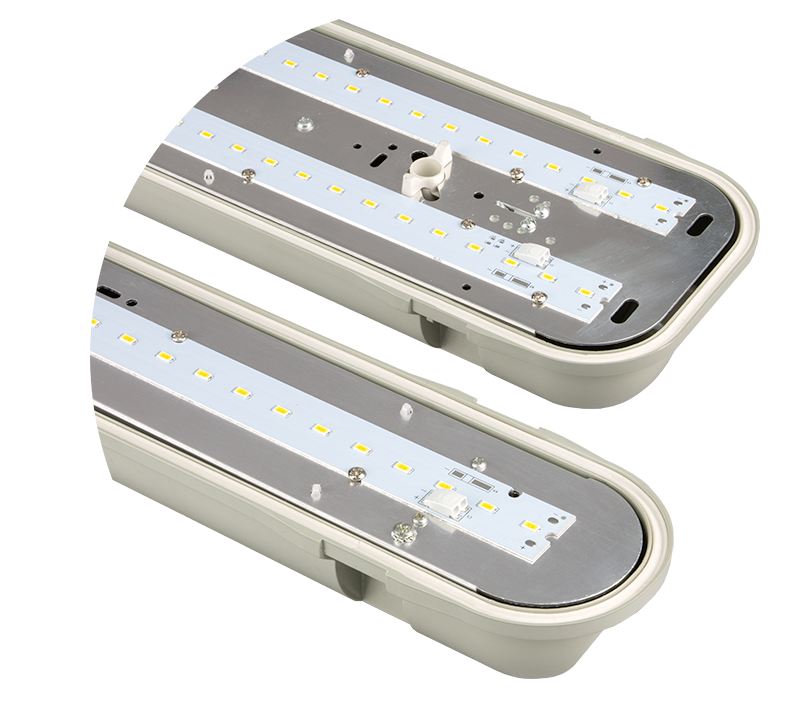

LED Modules

Using LED modules has more advantages over LED tubes.

  • LED modules are mounted directly on metal plates. This provides better heat dissipation and lower LED junction temperature
  • Higher efficiency due to removal of LED tube diffuser
  • No blocking for human motion sensor.

LED Drivers

LED modules are driven by external HLT LED drivers. The low voltage DC operation increases the safety as well as easier to incorporate with emergency lighting.

HLT series is the durable, high-performance LED drivers are specifically designed to work with Hoye LED modules, T8 lamps, LED spotlights and LED downlights.

The drivers have buit-in active power factor correction with very low harmonic distortion. Protections with over-current, short-ciruict and open-circuit are provided with automatic restart for ease of use.

More dimming drivers are available with 1-10V.

Dimensions

Compliances

EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)

EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules

EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements

EN 60598-1 Luminaires. General requirements and tests

EN 60598-2-1 Luminaires. Particular requirements. Specification for fixed general purpose luminaires

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

Product Models

Model Lamp Count Length (mm)
HFW-D-12 1 660
HFW-D-14 1 1276
HFW-D-15 1 1576
HFW-D-22 2 660
HFW-D-24 2 1276
HFW-D-25 2 1576

※ Add suffix “F” for optional fused terminal blocks



Model Lamp Count Length (mm)
HFW-D-12A 1 660
HFW-D-14A 1 1276
HFW-D-15A 1 1576
HFW-D-22A 2 660
HFW-D-24A 2 1276
HFW-D-25A 2 1576

※ Add suffix “F” for optional fused terminal blocks
