LED WATERPROOF BATTEN HFW-D SERIES

MOTION SENSOR (Draft)



Features

  • Replaceable LED module
  • LED drivers included
  • Available in single and double lamp versions
  • Built-in microwave motion sensor
  • Ingress protection rating: IP65

Electrical Characteristics

Rated supply voltage 220-240 VAC ±10%
Lamp switching cycles >200,000
Ambient temperature (ta) -20 … +50°C
Driver efficiency up to 90%
Power factor ≥95%
THD <15%
CRI >80
Lumen maintenance (L70) >35K Hrs

LED Modules

Using LED modules has more advantages over LED tubes.

  • LED modules are mounted directly on metal plates. This provides better heat dissipation and lower LED junction temperature
  • Higher efficiency due to removal of LED tube diffuser
  • No blocking for human motion sensor.

LED Drivers

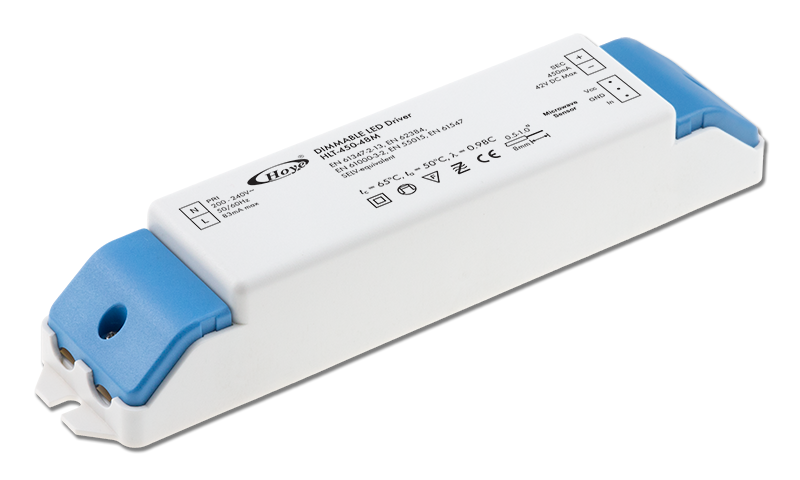

LED modules are driven by external HLT LED drivers with built-in motion sensor control. The low voltage DC operation increases the safety as well as easier to incorporate with emergency lighting.

HLT series is the durable, high-performance LED drivers are specifically designed to work with Hoye LED modules, T8 lamps, LED spotlights and LED downlights.

The drivers have buit-in active power factor correction with very low harmonic distortion. Protections with over-current, short-ciruict and open-circuit are provided with automatic restart for ease of use.

Dimensions

Compliances

EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)

EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules

EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements

EN 60598-1 Luminaires. General requirements and tests

EN 60598-2-1 Luminaires. Particular requirements. Specification for fixed general purpose luminaires

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

Product Models

Model Lamp Count Length (mm)
HFW-DM-12 1 660
HFW-DM-14 1 1276
HFW-DM-15 1 1576
HFW-DM-22 2 660
HFW-DM-24 2 1276
HFW-DM-25 2 1576

※ Add suffix “F” for optional fused terminal blocks
