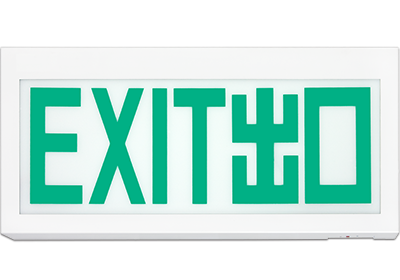

LED EXIT SIGN

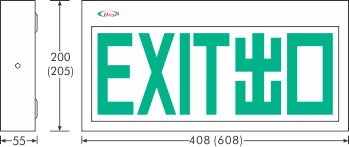

HLX WALL MOUNTING – BOX TYPE
- Intelligent LED exit signs with automatic self-test
- Nichia LEDs with 50K hours life at L70, with IES LM-80-08 certified
- System power is only 2W
- Full solid-state design without mechanical part
- Constant brightness control for both AC and DC operations
- Programmable lamp flashing in emergency mode
- Less than 5°C temperature rise for the whole system
- Deep-discharge shutdown for battery protection
- Optically isolated low voltage test switch
- High efficient switching mode charger with full protections
- Pulse charge mode for full battery
- Less than 12 hours battery recharge time
- High quality light guide panels
- Optional infrared remote control for self-test, system set up and dimming
|Rated supply voltage||220-240 VAC (-20%, +10%)|
|Supply frequency||50-60 Hz|
|Circuit power||2.0W max|
|Changeover time||<0.1 Sec|
|Recharge time||<12 hrs|
|Rated discharge time||4 hrs (typical 4.5 hrs)|
|Lumen Maintenance (L70)||>50K Hrs|
|Battery capacity failure threshold||<1 hour|
|Battery cut-off voltage||<1.0V/cell|
|Ambient temperature (ta)||0 … +50°C|
|Max. temperature rise (Δt)||<5°C|
|Lumen factor||Normal mode: 100%
Emergency mode: 120%
Hours of LED Life
LED ChipsThe series incorporates best of best Nichia LEDs from Japan. The LEDs have the longest LED life and the best performance in the industry.
They are IES lM-80-2008 (Measuring Lumen Maintenance of LED Light Sources) certified for the best reliability and performance.
For eye safety, the LEDs are also IEC 62471:2008 (Photobiological Safety of Lamps and Lamp Systems) certificated.
Micro-Controller Controlled Operations
The whole system is software controlled by a single chip micro-controller. These include battery charging, discharge discharging, system changeover, fault protections, LED indications and infrared remote control.
The improves system reliability and makes the system smarter for the whole operations.
The system will perform automatic diagnostic for the control gear itself and also the battery conditions. It will start the diagnostic every month for the following test:
Once fault is found, the red LED indicator will flash with different patterns for various error types.
The infrared remote control makes maintenance easier than ever. It can be used to set the LED exit sign system settings and self-test functions.
Panel brightness dimming control in normal operation
Flashing model in emergency mode
System changeover test (simulate traditional test button)
Light Guide Panel
Light guide panel is a transparent acrylic panel made from pure PMMA resin, on whose bottom face a dot matrix is printed. The light source is on its edge. It distributes the light coming from the light source evenly over the whole upper face of the acrylic panel.
Light guide panel is characterised by high uniformity of light and efficiency.
EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)
EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules
EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements
EN 60598-1 Luminaires. General requirements and tests
EN 60598-2-22 Luminaires. Particular requirements. Luminaires for emergency lighting
EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
EN 61547 Equipment for general lighting purposes. EMC immunity requirements
Emergency Exit Legends
※ Replace “#” for emergency exit legend codes above.
