LED EXIT SIGN

HLX RECESSED MOUNTING

Features

  • Intelligent LED exit signs with automatic self-test
  • Nichia LEDs with 50K hours life at L70, with IES LM-80-08 certified
  • System power is only 2W
  • Full solid-state design without mechanical part
  • Constant brightness control for both AC and DC operations
  • Programmable lamp flashing in emergency mode
  • Less than 5°C temperature rise for the whole system
  • Deep-discharge shutdown for battery protection
  • Optically isolated low voltage test switch
  • High efficient switching mode charger with full protections
  • Pulse charge mode for full battery
  • Less than 12 hours battery recharge time
  • High quality light guide panels
  • Optional infrared remote control for self-test, system set up and dimming

Electrical Characteristics

Rated supply voltage 220-240 VAC (-20%, +10%)
Supply frequency 50-60 Hz
Circuit power 2.0W max
Changeover time <0.1 Sec
Recharge time <12 hrs
Rated discharge time 4 hrs (typical 4.5 hrs)
Power factor >0.8
Lumen Maintenance (L70) >50K Hrs
Battery capacity failure threshold <1 hour
Battery cut-off voltage <1.0V/cell
Ambient temperature (ta) 0 … +50°C
Max. temperature rise (Δt) <5°C
Battery type NiCd
Lumen factor Normal mode: 100%
Emergency mode: 120%

Years Warranty

Hours of LED Life

Watt

LED Chips

The series incorporates best of best Nichia LEDs from Japan. The LEDs have the longest LED life and the best performance in the industry.

They are IES lM-80-2008 (Measuring Lumen Maintenance of LED Light Sources) certified for the best reliability and performance.

For eye safety, the LEDs are also IEC 62471:2008 (Photobiological Safety of Lamps and Lamp Systems) certificated.

Micro-Controller Controlled Operations

The whole system is software controlled by a single chip micro-controller. These include battery charging, discharge discharging, system changeover, fault protections, LED indications and infrared remote control.

The improves system reliability and makes the system smarter for the whole operations.

Self-test

The system will perform automatic diagnostic for the control gear itself and also the battery conditions. It will start the diagnostic every month for the following test:

Charger
LED lamp
System changeover
Battery voltage
Battery discharge

Once fault is found, the red LED indicator will flash with different patterns for various error types.

Remote Control

The infrared remote control makes maintenance easier than ever. It can be used to set the LED exit sign system settings and self-test functions.

Panel brightness dimming control in normal operation
Flashing model in emergency mode
System changeover test (simulate traditional test button)
On-demand self-test

LED Indications

The infra-red remote control makes battery change-over testing is easier with just a press on the controller. It also provide 5-steps of dimming control for normal AC operation.

green-led-on-off Battery Charging
green-led-on-on Battery Full
red-led-on-on Battery Discharging
red-led-on-off System Errors

Light Guide Panel

Light guide panel is a transparent acrylic panel made from pure PMMA resin, on whose bottom face a dot matrix is printed. The light source is on its edge. It distributes the light coming from the light source evenly over the whole upper face of the acrylic panel.

Light guide panel is characterised by high uniformity of light and efficiency.

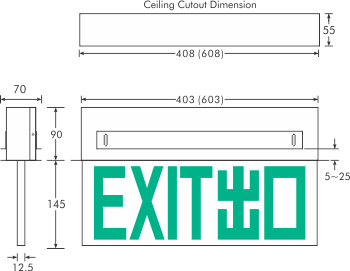

Dimensions

Compliances

EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)

EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules

EN 62384 DC or AC supplied electronic control gear for LED modules. Performance requirements

EN 60598-1 Luminaires. General requirements and tests

EN 60598-2-22 Luminaires. Particular requirements. Luminaires for emergency lighting

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

Emergency Exit Legends

Product Models

Model Panel Width
(mm)
Illuminated
Side
HXL-R4S# 400 Single
HXL-R4D# 400 Double
HXL-R6S# 600 Single
HXL-R6D# 600 Double

※ Replace “#” for emergency exit legend codes above.
