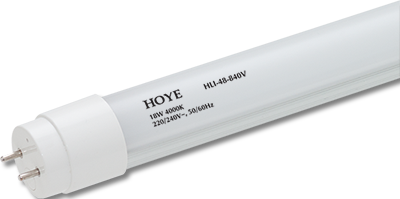

HLI T8 LED LAMP (INTEGRATED DRIVER)

VALUE SERIES

Features

  • Integrated driver with high PFC
  • For direct replacement for conventional control gear circuit as per IEC 62776:2014
  • Rewiring and removal of magnetic ballast are not required
  • Ultra high efficient and durable control driver IC and Japanese electrolytic capacitors
  • Everlight with 35K hours life at L70
  • High number of switching cycles
  • Aluminum PCB for better LED heat dissipation
  • Using segmenting LED binnings for narrower CCT range
  • System efficacy up to 108 lm/w
  • Aluminum heat sink with polycarbonate tube
  • Extremely break resistant
  • Complies with RoHS directive

Characteristics

Rated supply voltage 220-240 VAC ±10%
Supply frequency 50-60 Hz
Start time < 0.5 Sec
Lamp switching cycles >200,000
Ambient temperature (ta) -20 … +50°C
Driver efficiency up to 87%
Power factor ≥95%
THD <15%
Protection IP20
CRI >80
Beam angle 150°
Lumen maintenance (L70) >35K Hrs

%

Power Factor

%

THD

Years Warranty

Hours of LED Life

Lumen / Watt

LED Chips

Everlight LEDs are used for this series to achieve  high efficacy,  high CRI and price performance ratio.

They are IES lM-80-2008 (Measuring Lumen Maintenance of LED Light Sources) certified to sure the reliability and performance.

http://parts4mobiles.com/acatalog/image_coming_soon.jpg

LED Drivers

The LED drivers are integrated inside LED tubes and have all the EMC filters, power factor correction and fault protection features.

The drivers are built by using high efficient control IC and long life high temperature electrolytic capacitors from Japan.

LED Tube Dimensions

Model Diameter
(mm)
Length L
(mm)
HLI-24-8xx 28 603
HLI-36-8xx 28 908
HLI-48-8xx 28 1213
HLI-60-8xx 28 1513

CCG Retrofit Instructions (as per IEC 62776)

  1. Switch off electricity
  2. Rotate the conventional lamp
  3. Remove the conventional lamp
  4. Remove the starter
  5. Click the LED replacement starter into the starter holder
  6. Insert the LED lamp into the lampholder.
  7. Secure the position by turning the lamp by 90°
  8. Switch on electricity and check for lamp starting

Direct Wiring Instructions

  1. Rewiring must be done by qualified electricians only
  2. Switch off and disconnect electricity
  3. Remove the fluorescent lamp
  4. Remove power factor correction capacitor if installed

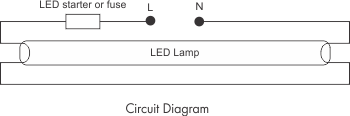

  5. Rewire the luminaire as shown in the circuit diagam
  6. Use LED replacement starter or a fuse of 250V 2A for protection
  7. Insert HLI T8 LED lamp
  8. Mark the luminaire to indicate replacement LED lamp type
  9. Never insert fluorescent lamp with rewired luminaire

Compliances

EN 62776:2014 Double-capped LED lamps designed to retrofit linear fluorescent lamps – Safety specifications

EN 62471:2008 Photobiological safety of lamps and lamp systems

EN 60155 Glow-starters for fluorescent lamps

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

Product Models

Model Circuit
Power (W)
PF
(%)
THD
(%)
CCT
(K)
Lumen
(lm)
Efficacy
(lm/W)
Length
(L)
HLI-24-830V 8.0 ≥92 <15 3000 790 99 603
HLI-36-830V 12.0 ≥95 <15 3000 1190 99 908
HLI-48-830V 16.0 ≥95 <15 3000 1585 99 1213
HLI-60-830V 20.0 ≥95 <15 3000 1980 99 1513
HLI-24-840V 8.0 ≥95 <15 4000 865 108 603
HLI-36-840V 12.0 ≥95 <15 4000 1295 108 908
HLI-48-840V 16.0 ≥95 <15 4000 1730 108 1213
HLI-60-840V 20.0 ≥95 <15 4000 2160 108 1513
HLI-24-865V 8.0 ≥95 <15 6500 865 108 603
HLI-36-865V 13.5 ≥95 <15 6500 1295 108 908
HLI-48-865V 16.0 ≥95 <15 6500 1730 108 1213
HLI-60-865V 20.0 ≥95 <15 6500 2160 108 1513
