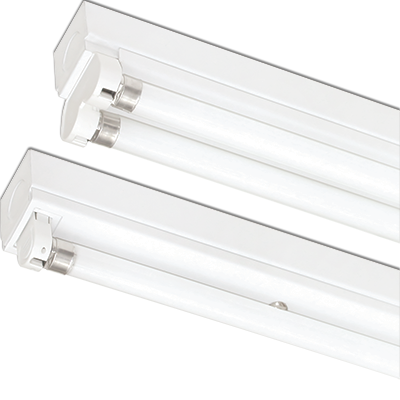

FLUORESCENT BATTENS

HFB T5

Features

  • For standard T5 lamps
  • Available in single and double lamp
  • HPP ballasts T5 HE lamps
  • HPX ballasts for T5 HO lamps
  • HDA ballasts for T5 HE and HO as 1-10V dimming option
  • 2-hr or 3-hr emergency lighting option

Constructions

Body White powered coated sheet body
Lamp holder BJB, flame retardant grade
Wires UL approved, 105°C
Terminal block BJB, flame retardant grade

ECGs Options

For non-dimming applications, HPP T5 HE and HPX T5 HO can be used.

For dimming applications, HDA T5 HE and HDA T5 HO are the best choice.

To have emergency lighting function,  a HED emergency lighting unit is connected to one of the above electronic ballasts as a whole system.

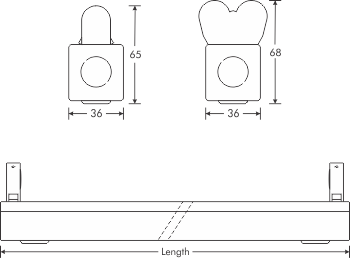

Dimensions

Compliances

EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)

EN 61347-2-3 Lamp control gear – Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control gear for fluorescent lamps

EN 61347-2-7 Particular requirements for battery supplied electronic controlgear for emergency lighting (self-contained)

EN 60929 AC and/or DC-supplied electronic control gear for tubular fluorescent lamps – Performance requirements

EN 60598-1 Luminaires. General requirements and tests

EN 60598-2-1 Luminaires. Particular requirements. Specification for fixed general purpose luminaires

EN 60598-2-22 Luminaires. Particular requirements. Luminaires for emergency lighting

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

FSD Circular Letter No. 1/2006: PPA-104(A) 4th Rev Fire Safety Standards for Emergency Lighting

Product Models

Model Lamp
Type
Length
(mm)
HFB-114PP T5 G5, 1x14W 577
HFB-121PP T5 G5, 1x21W 877
HFB-128PP T5 G5, 1x28W 1177
HFB-135PP T5 G5, 1x35W 1477
HFB-214PP T5 G5, 2x14W 577
HFB-221PP T5 G5, 2x21W 877
HFB-228PP T5 G5, 2x28W 1177
HFB-235PP T5 G5, 2x35W 1477
HFB-124PX T5 G5, 1x24W 577
HFB-139PX T5 G5, 1x39W 877
HFB-149PX T5 G5, 1x49W 1477
HFB-154PX T5 G5, 1x54W 1177
HFB-180PX T5 G5, 1x80W 1477
HFB-224PX T5 G5, 2x24W 577
HFB-239PX T5 G5, 2x39W 877
HFB-249PX T5 G5, 2x49W 1477
HFB-254PX T5 G5, 2x54W 1177
HFB-280PX T5 G5, 2x80W 1477

※ Replace “%” with “2” or “3” for emergency lighting duration of rechargeable batteries
※ Add suffix “E2” or “E3” for 2-hr or 3-hr emergency lighting option
※ Add suffix “F” for optional fused terminal blocks
