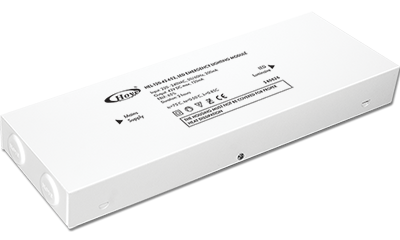

EMERGENCY LIGHTING UNITS

FOR HLD LED DOWNLIGHTS

Features

  • Micro-processor controlled self-contained emergency lighting units
  • AC and DC constant current drivers in one system
  • Support all Hoye HLL LED lamps
  • No relay for changeover
  • Safe and reliable low DC voltage changeover
  • Instant changeover, no black-out time
  • One bi-color LED for multiple status indications
  • LED short-circuit and open-circuit protections
  • Long life high temp Ni-Cd battery
  • Less than 1W standby power
  • Deep-discharge shutdown for battery protection
  • Constant current battery charger with open-load and over-current protections
  • Option of infrared remote control for testing and 5 steps of dimming control

Electrical Characteristics

Rated supply voltage 220-240 VAC (-10%, +10%)
Supply frequency 50-60 Hz
Changeover time <0.3 Sec
Recharge time <12 hrs
Power factor >0.85
Battery cut-off voltage <1.0V/cell
Ambient temp (ta) 0 … +50°C
Max. case temp (tc) 70°C
Weight 1.2 kg

Recharge Hours

Discharge Hours (option)

Micro-Controller Controlled Operations

The whole system is software controlled by a single chip micro-controller. These include battery charging, discharge discharging, system changeover, fault protections, LED indications and infrared remote control.

The improves system reliability and makes the system smarter for the whole operations.

LED Indications

The infrared remote control makes battery change-over testing is easier with just a press on the controller. It also provide 5-steps of dimming control for normal AC operation.

green-led-on-off Battery Charging
green-led-on-on Battery Full
red-led-on-on Battery Discharging
red-led-on-off System Errors

Remote Control (option)

The infrared remote control makes battery change-over testing is easier with just a press on the controller. It also provide 5-steps of dimming control for normal AC operation.

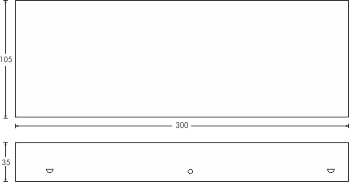

Dimensions

Compliances

EN 61347-2-1 Lamp controlgear. Particular requirements for starting devices (other than glow starters)

EN 61347-2-13 Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules

EN 61951-1 Secondary cells and batteries containing alkaline or other non-acid electrolytes – Portable sealed rechargeable single cells – Part 1: Nickel-cadmium

BS 5266 part 1 Emergency lighting. Code of practice for the emergency lighting of premises

EN 1838 Lighting applications. Emergency lighting

EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment

EN 61000-3-2 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)

EN 61000-3-3 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

EN 61547 Equipment for general lighting purposes. EMC immunity requirements

FSD Circular Letter No. 1/2006: PPA-104(A) 4th Rev Fire Safety Standards for Emergency Lighting

Product Models

Model LED Lamp Lamp
Power (W)
Lamp Type Battery EBLF Discharge
Hours (Hrs)
HEL-120-48-752 HLD-45S36 4.5 80mm Spot Light H10A10 (9.6V, 1.0Ah) 75 2
HEL-120-48-653 HLD-45S36 4.5 80mm Spot Light H10A10 (9.6V, 1.0Ah) 65 3
HEL-180-48-502 HLD-65S36 6.5 80mm Spot Light H10A10 (9.6V, 1.0Ah) 50 2
HEL-180-48-423 HLD-65S36 6.5 80mm Spot Light H10A10 (9.6V, 1.0Ah) 42 3
HEL-220-48-502 HLD-108HW 8.0 190mm Downlight H10A10 (12.0V, 2.0Ah) 50 2
HEL-220-48-333 HLD-108HW 8.0 190mm Downlight H10A10 (12.0V, 2.0Ah) 33 3
HEL-275-48-652 HLD-110HW 10.0 190mm Downlight H10S20F (12.0V, 2.0Ah) 65 2
HEL-275-48-583 HLD-110HW 10.0 190mm Downlight H10S20F (12.0V, 2.0Ah) 58 3
HEL-400-48-452 HLD-114HW 14.0 190mm Downlight H10S20F (12.0V, 2.0Ah) 45 2
HEL-400-48-403 HLD-114HW 14.0 190mm Downlight H10S20F (12.0V, 2.0Ah) 40 3
HEL-550-48-332 HLD-120HW 20.0 190mm Downlight H10S20F (12.0V, 2.0Ah) 33 2
HEL-550-48-303 HLD-120HW 20.0 190mm Downlight H10S20F (12.0V, 2.0Ah) 30 3
